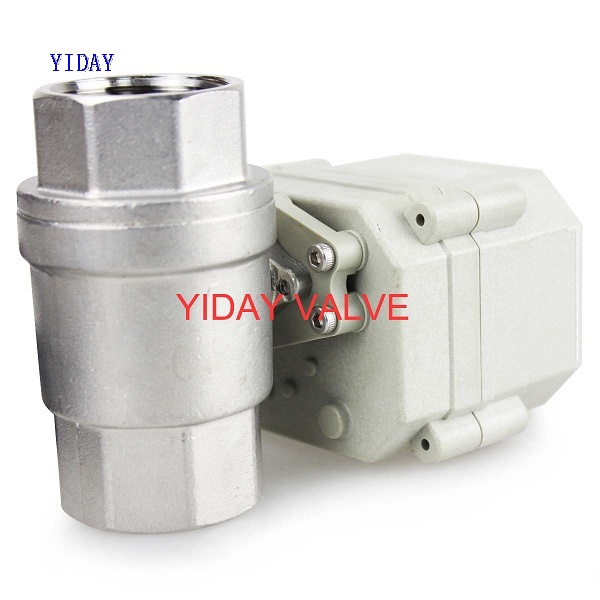

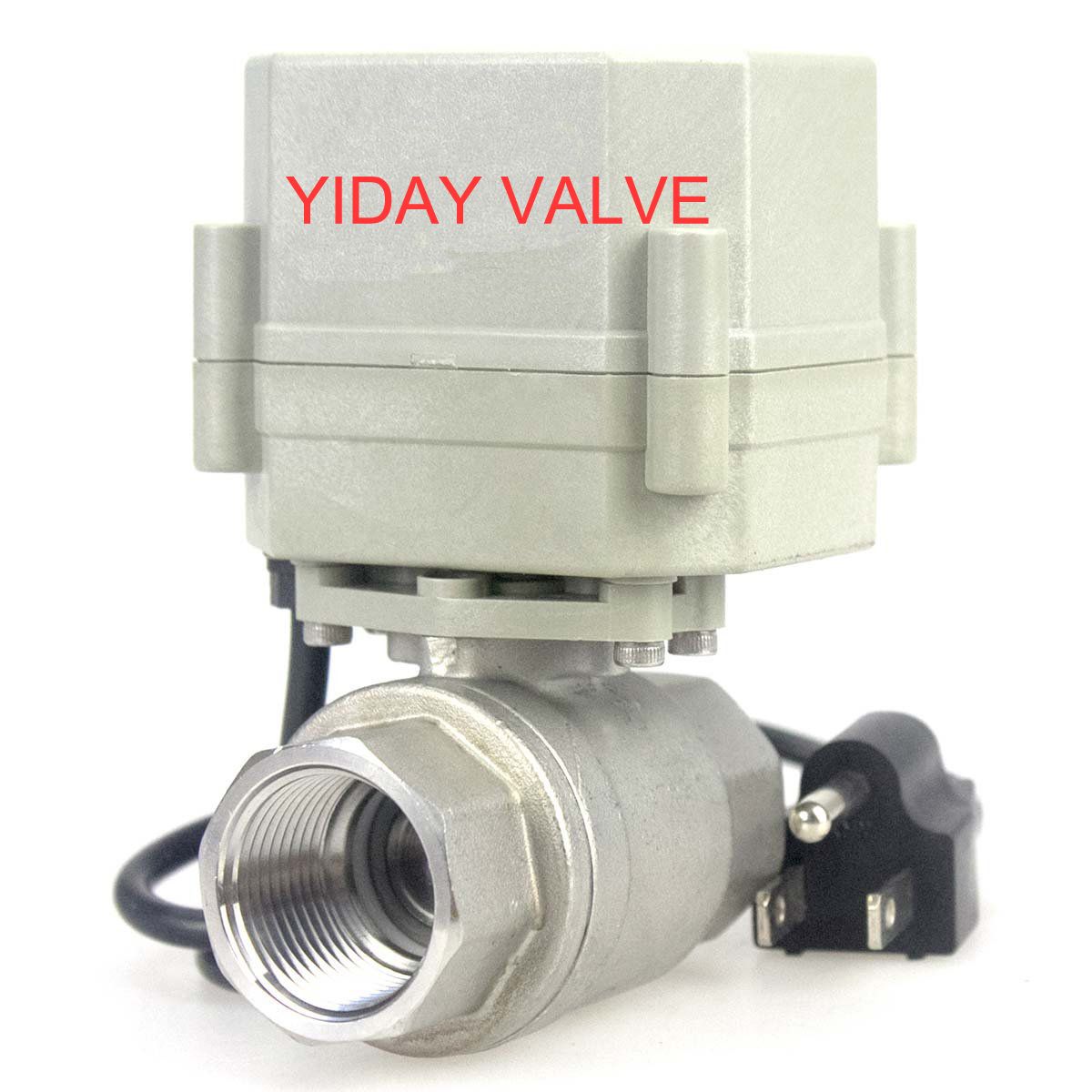

Product name : 3/4
Product No. : 20183614508
valve size :
←[Previous Product]              [Next Product]→
Online Inquiry         Email Us

  Details:



Product description

Size:3/4" Stainless Steel

Voltage: 110-230 VAC (you can make the item work with voltage from AC110V--AC220V)
Cables Length: 0.5 Meters
Body Material: Stainless Steel 304
Manual Override: No
Indicator: Yes
Open/Closed Time: 3-5S
Suitable Media: Air, Water, Oil
Power: Max 2 Watts
Working Current: Max 500Ma
Max. Torque Force: 2 N.M
Max Working Pressure:145PSI
Actuator Material: Engineering Plastics
Sealing Material: EPDM and PTFE
Actuator Rotation: 90 Degree
Install By Any Angle
Environment Temperature:5~122F
Liquid Temperature: 32~194F (-5°~120° In Celsius)
